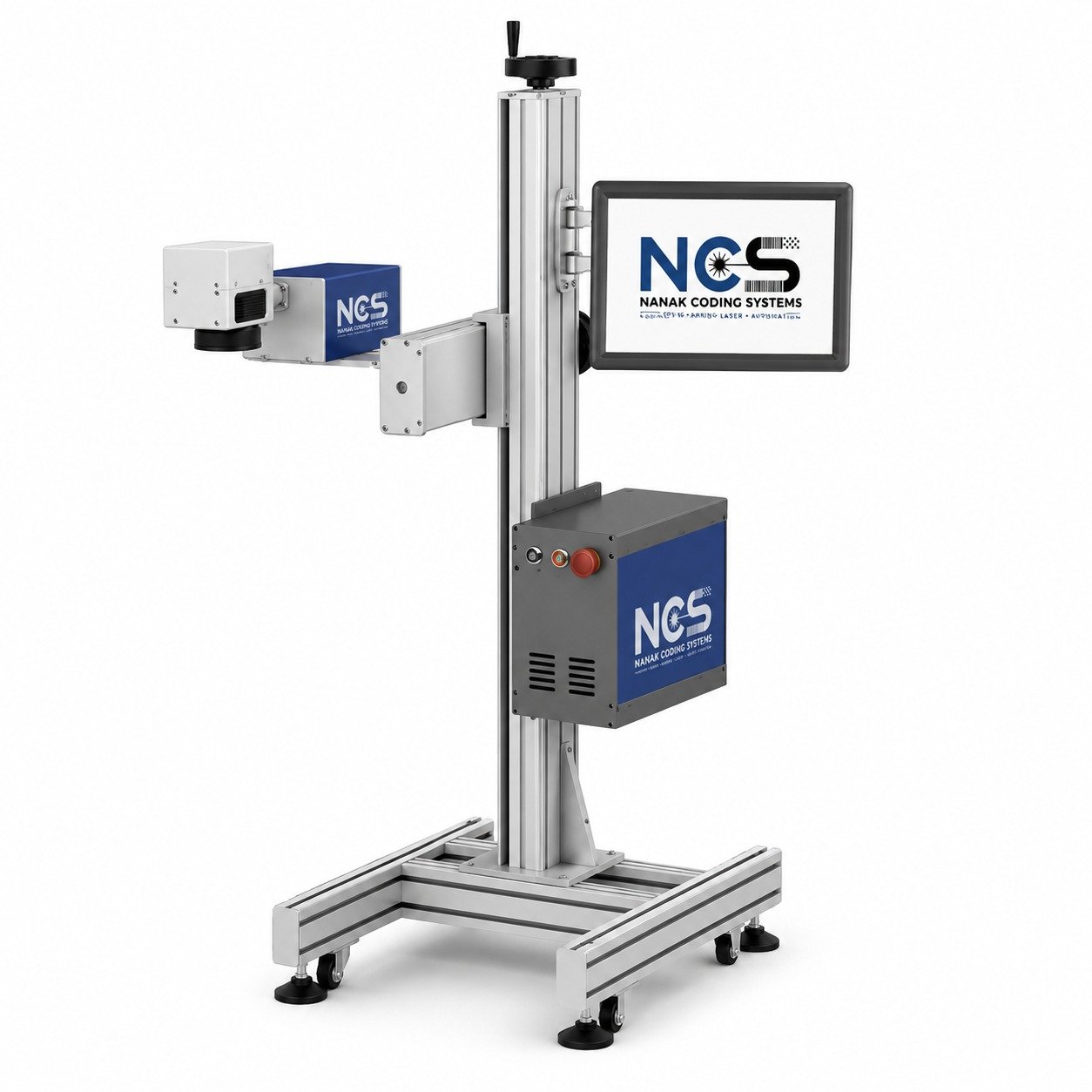

UV Laser Marking Machine
High-precision UV Laser Marking Machine designed for ultra-fine and permanent marking on plastics, glass, ceramics, electronic components, medical devices, silicon wafers, and other heat-sensitive materials.
Technical Specifications
| Machine Type | UV Laser Marking Machine |
|---|---|
| Body Material | All Aluminium Structure |
| Laser Source | UV Laser Source |
| Laser Power | 2W / 3W / 5W |
| Laser Wavelength | 355 nm |
| Marking Speed | ≤ 12000 mm/s |
| Marking Line Width | 0.03 mm |
| Marking Depth | 0.01 – 0.03 mm |
| Marking Area | 110 × 110 mm |
| Marking Accuracy | ≤ 0.01 mm |
| Repeat Accuracy | ≤ 0.01 mm |
| Marking Type | Dot Matrix & Vector |
| Production Line Speed | 0 – 280 m/min |
| Positioning Mode | Red Light Focus with Red Light Preview |
The UV Laser Marking Machine utilizes advanced 355 nm ultraviolet laser technology to produce exceptionally fine, permanent markings with minimal heat impact. It is the ideal solution for precision industries requiring high-quality marking on plastics, glass, crystal, ceramics, PCB boards, semiconductor components, medical instruments, cosmetic packaging, and electronic products. With outstanding speed, stability, and accuracy, it delivers crisp logos, serial numbers, QR codes, barcodes, and intricate graphics while preserving the integrity of delicate materials.
